Ftp speed through Watch

Transfer speed from and to Ftp servers can be monitored by Watches, using the condition Transfered speed of FTP. You choose a data sample, which is then submitted to the Ftp server at each test. The watch's setup procedure is described and  illustrated in the text below.

Recommendation: If you haven't worked with Watches yet, read the Indroduction to setup of Watches, conditions, actions first.

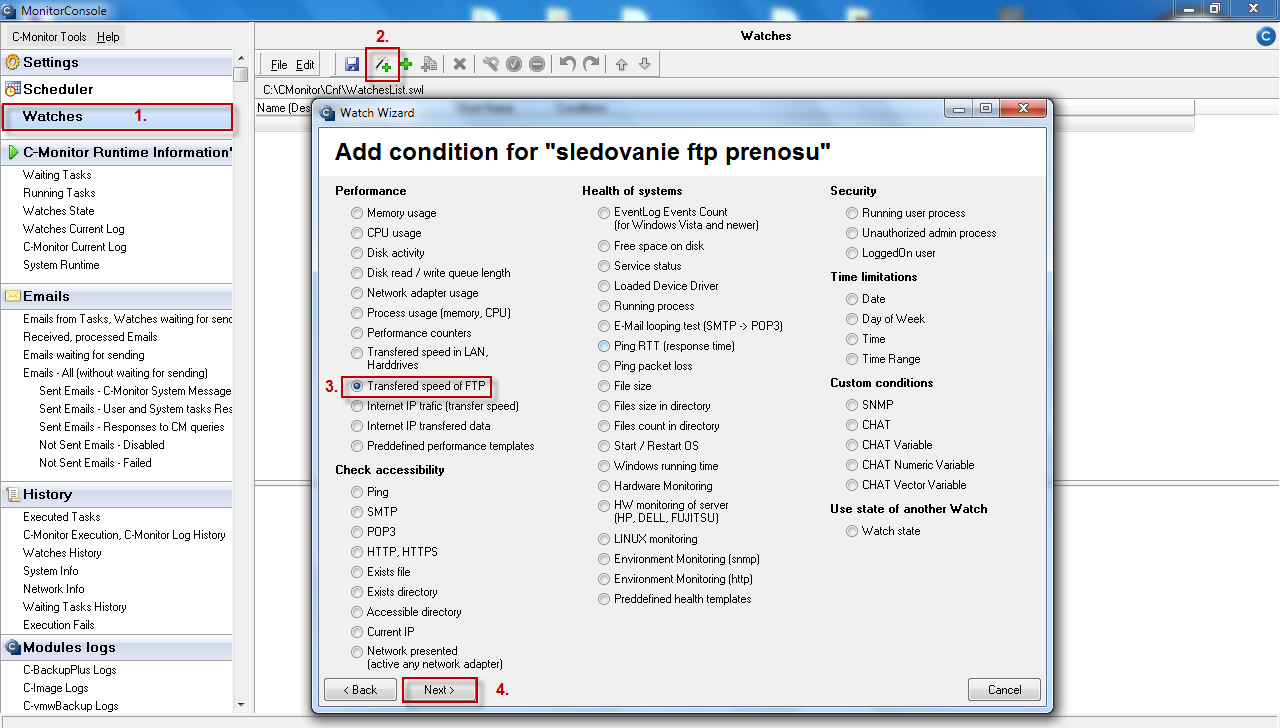

The watch for monitoring of Ftp transfer speed is added in the C-Monitor client's Scheduler. Launch of the wizard for watch addition is displayed on the next image.

Addition of watch for monitoring of Ftp speed

Image: Pridanie watchu pre sledovanie Ftp rýchlosti

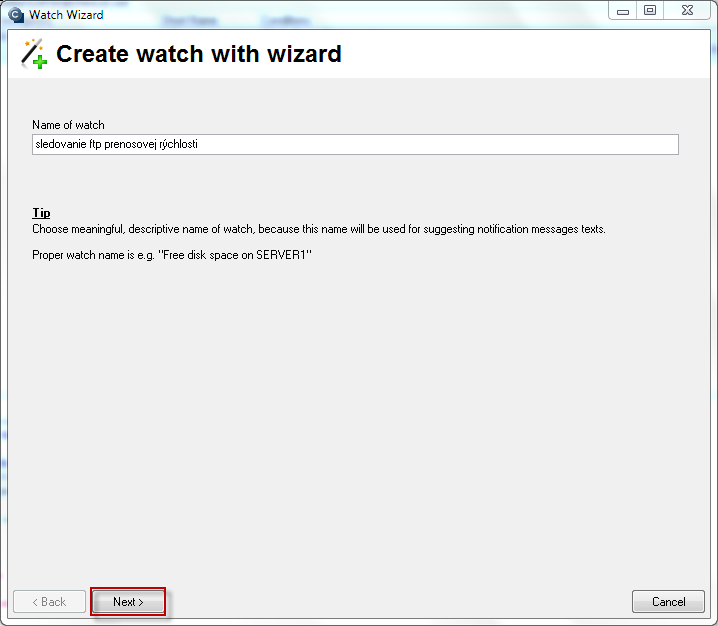

Choose a name for the watch in the next window.

Choose name of the Watch

Image: Zvolíte si názov Watchu

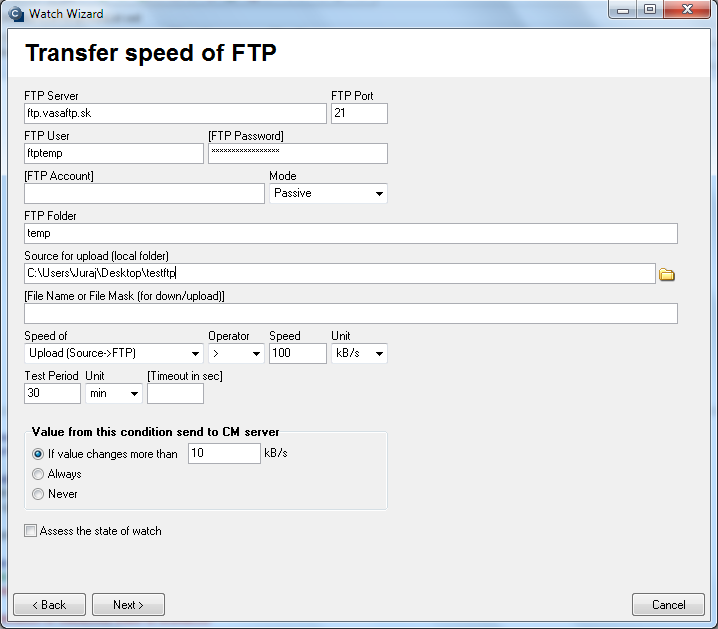

In the next window, enter address of the Ftp server, username and password to the Ftp server, and in section Source for upload (local folder) select data sample from your PC, which is going to be sent to the Ftp server. You'll set a minimal speed, which should be reached, we've set the speed to be minimum 100kb/s for the example case. If the transfer speed was lower than the 100kb/s, the watch would be switched to fail state, and you'd be notified about the decreased transfer speed of the ftp server, either by SMS message or email.

Set parameters for monitoring of Ftp speed

Image: Nastavíte parametre pre monitoring Ftp rýchlosti

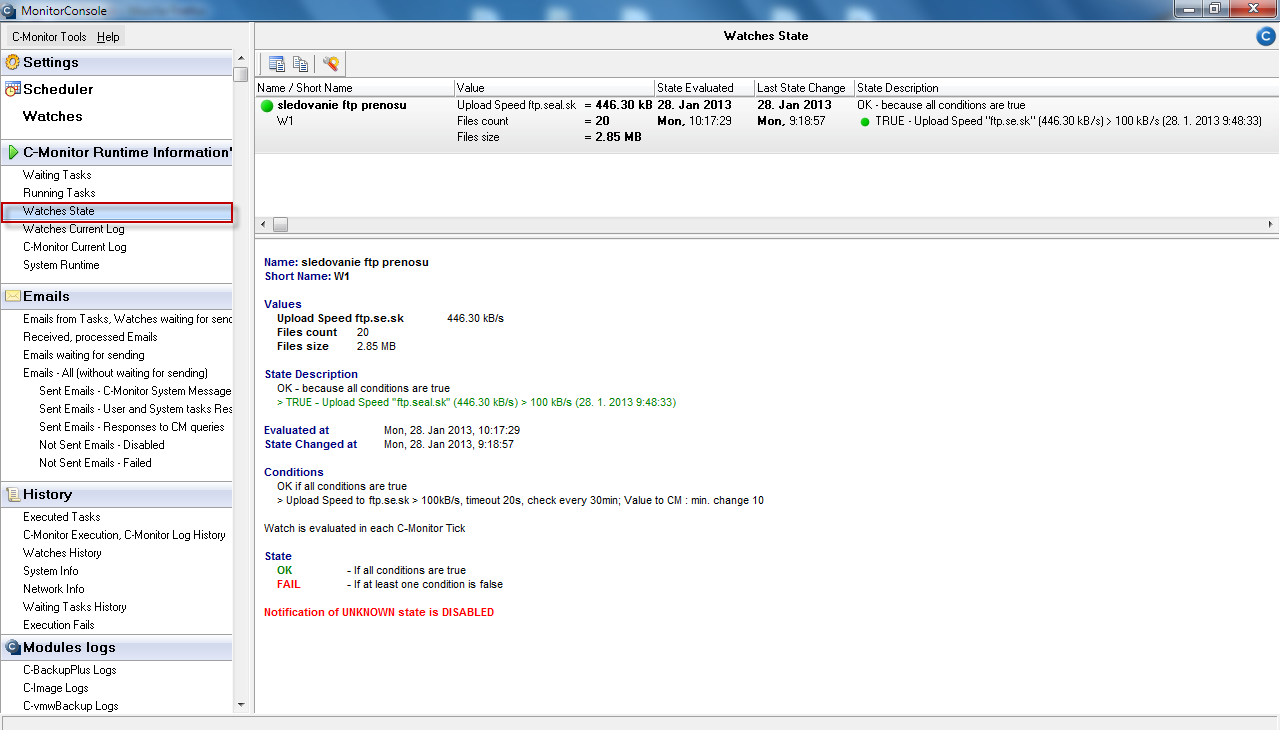

The Watch's status with currently measured values can be viewed in the section Watch state in C-Monitori client's scheduler, as displayed on the following image.

View of the Watch's state through C-Monitor client console

Image: Zobrazenie stavu Watchu cez C-Monitor klient console

A view of the watch's state can be also accessed through CM portal, in the section Presentation and Evaluation -> Presentation -> Watches (Online monitoring), where you select the PC where this monitoring is configured using the upper filter, as you can see on the next image.



View of the Watch's state through CM portal

Image: Zobrazenie stavu watchu cez CM portál
